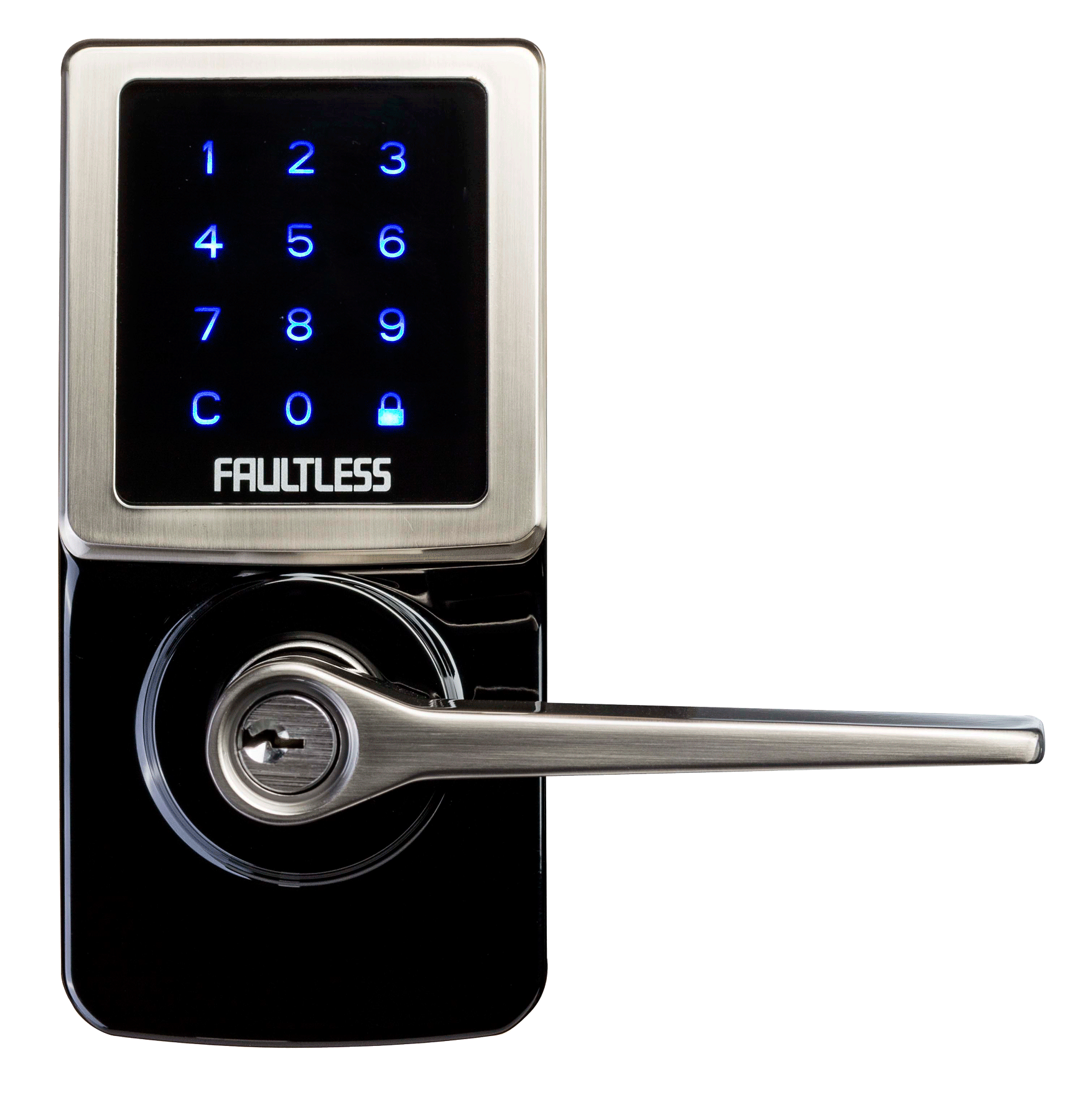

TL-505P

Descripción Product Specification User codes: 25 sets (4 to 8 digits each)Programming code: 1 set (4 to 8 digits)Key: 3Dimension (W*H*D): 160 x 80 x 73 mmFinish: Two-tone Black and Silver / Satin Nickel / Aged BronzeDoor bore hole: 2-1/8"(54 mm)Door thickness: 1-3/8"(35 mm) to 2"(51 mm)Adjustable backset: 2-3/8"(60 mm) and 2-3/4"(70 mm)Touch Screen Back-light color: BluePower: DC 6V (Four AA 1.5V alkaline batteries)Operation temperature: -31℉ to 150.8℉ (-35℃to 66℃)（Temperature tolerance could vary due to different weather conditions）  Product Character Great Convenience Touch to activate, touch to lock Holds up to 25 user codes Holds up to 4 single-entry codes Volume control (adjustable to work with environments) Vacation mode (deactivates all user codes temporarily) Auto-lock with adjustable delay (10 - 99 seconds) Back-up mechanical keyway Easy switch to passage mode (the lockset stays unlocked if switched on) Uncompromised Security ANSI Grade 2 quality – Deadbolt operates over 150,000 times ANSI A156.25 compliant - resistant to dust, rain, and corrosion under variable temperatures 4-digit random guiding code prevents code-probing Touch screen is temporarily disabled after 4 consecutive incorrect entries Lifetime limited mechanical, 5-year finish and 1-year limited electronics warranty Easy Installation Replaces your existing leverset Easy installation with a Philips screwdriver Fits most standard door preparations
