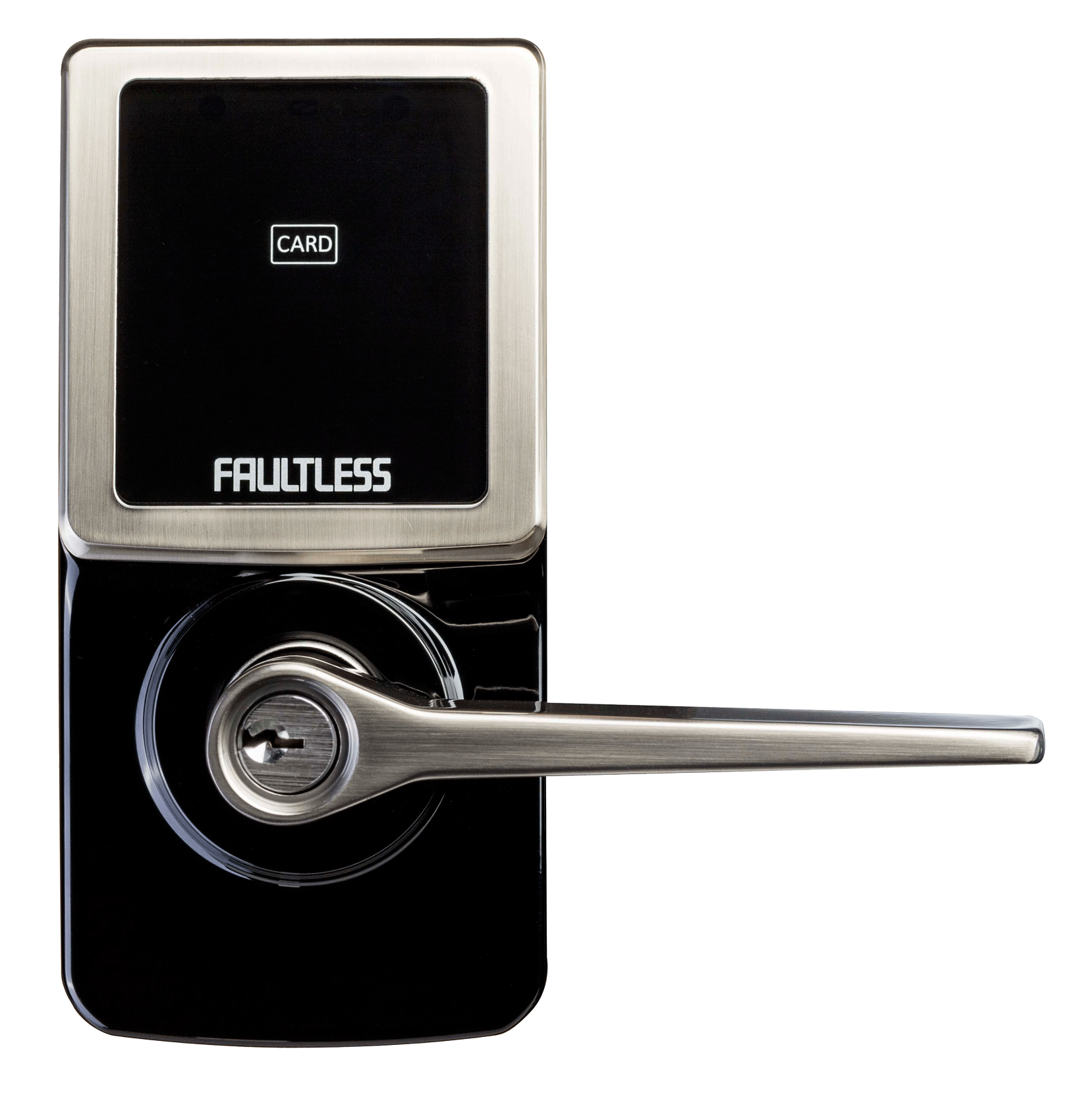

TL-505C

Descripción Product Specification   User cards: 25 sets (4 to 8 digits each)Programming card: 1 set (4 to 8 digits)Key: 3Dimension (W*H*D): 160 x 80 x 73 mmFinish: Two-tone Black and Silver / Satin Nickel / Aged BronzeDoor bore hole: 2-1/8"(54 mm)Door thickness: 1-3/8"(35 mm) to 2"(51 mm)Adjustable backset: 2-3/8"(60 mm) and 2-3/4"(70 mm)Touch Screen Back-light color: BluePower: DC 6V (Four AA 1.5V alkaline batteries)Operation temperature: -31℉ to 150.8℉ (-35℃to 66℃)（Temperature tolerance could vary due to different weather conditions）   Product Character Great Convenience Easy and swift card management system Holds up to 25 user cards Safe egress from inside in emergency Auto-lock in 5 seconds after the door is closed Back-up mechanical keyway Uncompromised Security ANSI Grade 2 quality – Latch operates over 400,000 times ANSI A156.25 compliant - resistant to dust, rain, and corrosion under variable temperatures Touch screen is temporarily disabled after 4 consecutive incorrect entries Lifetime limited mechanical, 5-year finish and 1-year limited electronics warranty Easy Installation Replaces your existing leverset Easy installation with a Philips screwdriver Fits most standard door preparations
