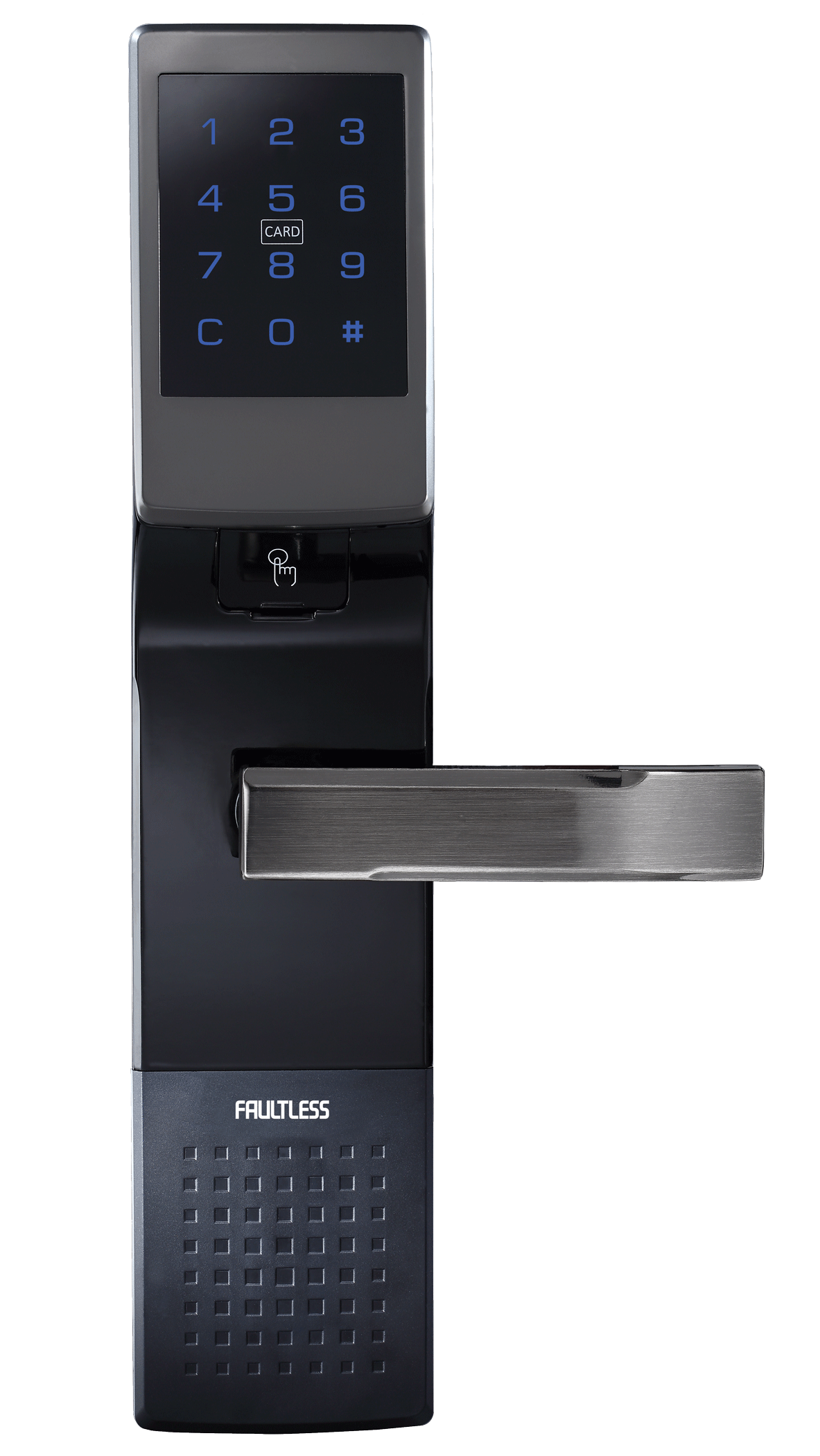

TD-704PCF

Descripción Product Specification  User code capacity：32(4 to 8 digits each, must be programmed with an access card)Access card capacity：32(Each card can be paired with a user code)Fingerprint capacity：200Key：2Dimension：Exterior lock assembly : 345mm x 75.2mm x 62.3mm (with lever)                       Interior lock assembly : 345mm x 75.2mm x 62.3mm (with lever)Finish：Two-tone Black and SilverDoor bore hole：2-1/8"(54mm) or 1-1/2"(38mm)Door thickness：45 to 85mm (standard); 35 to 85mm (with optional base plates)Backset：70mm (standard) or 60mm (optional)Touch screen back-light color：BluePower supply：DC 6V (Four AA 1.5V alkaline batteries)Operation temperature：-20 ℃ to 60 ℃ (Temperature tolerance could vary due to different weather conditions) Memory：Volatilization-free memory module (permanent data storage without re-programming after battery replacement) Product Character Daily Convenience Multiple access function (User Pin Code / Card / Fingerprint / Mechanical Key) Tactile activation and touch screen interface Voice guide (can be switch mute / normal / louder, Mandarin only) Volume control (gradational options and mute mode) Auto lock selector (can switched to enable / disable) Low battery indicator Mechanical key override Uncompromised Security Fire-rated for CNS (Taiwan) Lift-and-Lock mechanism – easy and assured manual locking method Night-latch design assures zero exterior entry when switched on Panic-proof lever design – turn the interior lever for egress in emergency Four-digit guiding code (prevents code-probing by increasing fingerprints on the touch screen) Touch screen is disabled after three consecutive incorrect user code entries Lifetime limited mechanical, 5-year finish and 1-year limited electronics warranty Easy Installation Manufactured to a wide range of door thickness from 1-3/8 – 3-5/16” (35 – 85mm) Voice-guided programming process (Mandarin only) Graphic step-by-step installation instruction Graphic step-by-step user manual
