MITSA

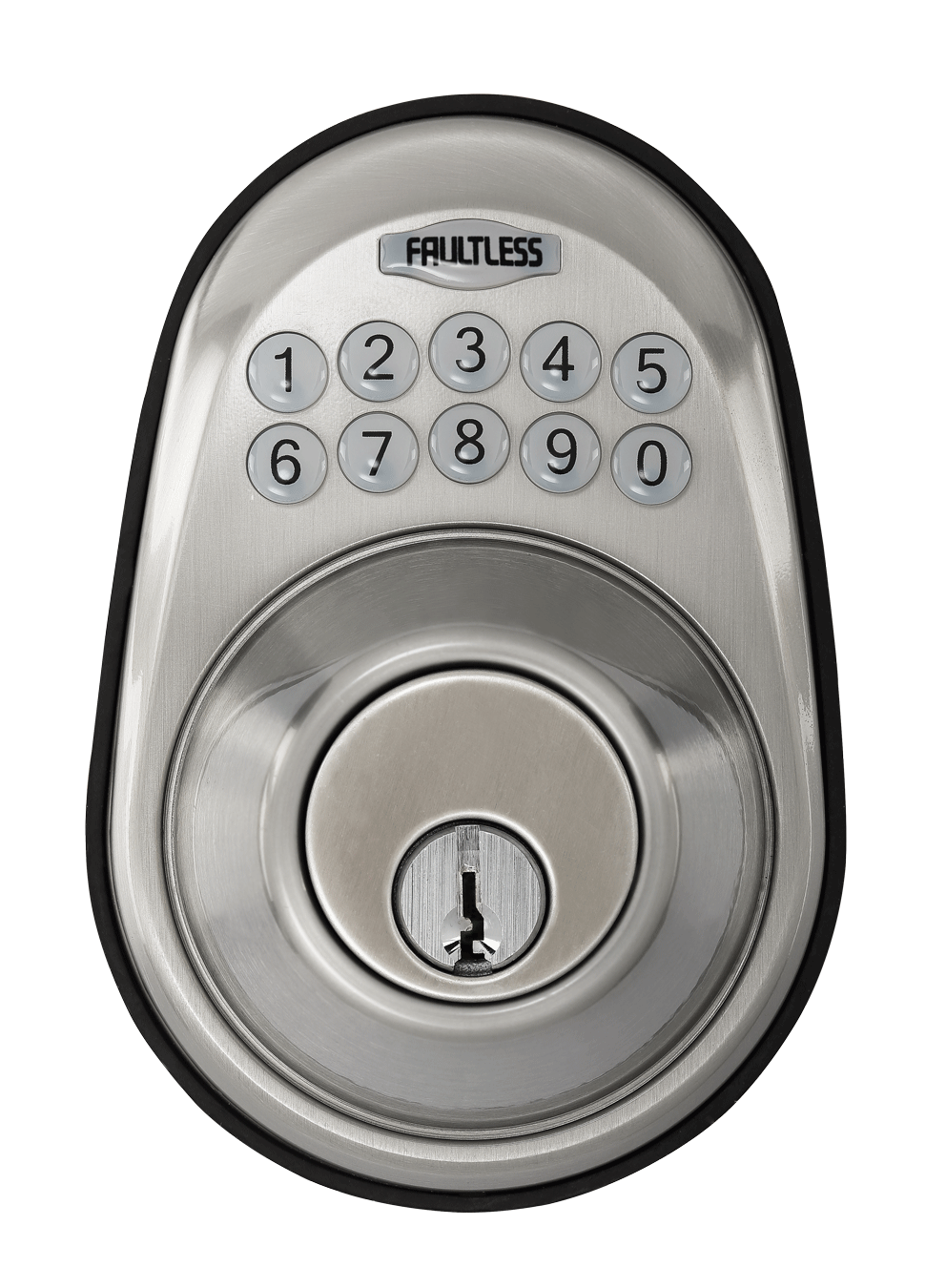

KD-306P
Descripción
Features
ANSI/BHMA Grade 3 security.
Ideal for garage entry doors, home offices, computer rooms, utility rooms, etc.
Works with standard door preparations and can beinstalled with a screw driver in a few minutes without running wires.
Back-up keyway override.
Illuminated keypad.
Low battery indicator.
Lifetime limited mechanical, 5-year finish and 1-year limited electronics warranty.
Product Character
Special Function
Automatic bolt direction determination (door handing).
Multiple user codes and cards that can be turned off as needed (vacation mode).
Any code or card can be set up for single-entry and become invalid after one-time use.
Flexibility to choose the automatic relocking mode.
Adjustable automatic relocking delay.
Product Specification
User code: 4-6 digit number combination (maximum capacity:10 sets)
Programming code: 6 digit number combination (only 1 set)
Key: 2
Size (Exterior): 3-5/16" x 4-7/8" x 1-3/8"
Size (Interior): 3-1/8" x 6-27/32" x 2-1/32"
Finish: Satin Nickel, Aged Bronze, Bright Brass, Satin Chrome
Door bored hole: 2-1/8"(54 mm) or 1-1/2"(38 mm)
Door thickness: 1-3/8"(35 mm) to 2"(51 mm)
Adjustable backset: 2-3/8"(60mm) or 2-3/4"(70mm)
Keypad LED color: Blue
Power: DC 6V (Four AA 1.5V alkaline batteries)
Operation temperature : -31 F to 150.8 F (-35 C to 66 C)(Temperature tolerance could vary due to different weather conditions)
