MITSA

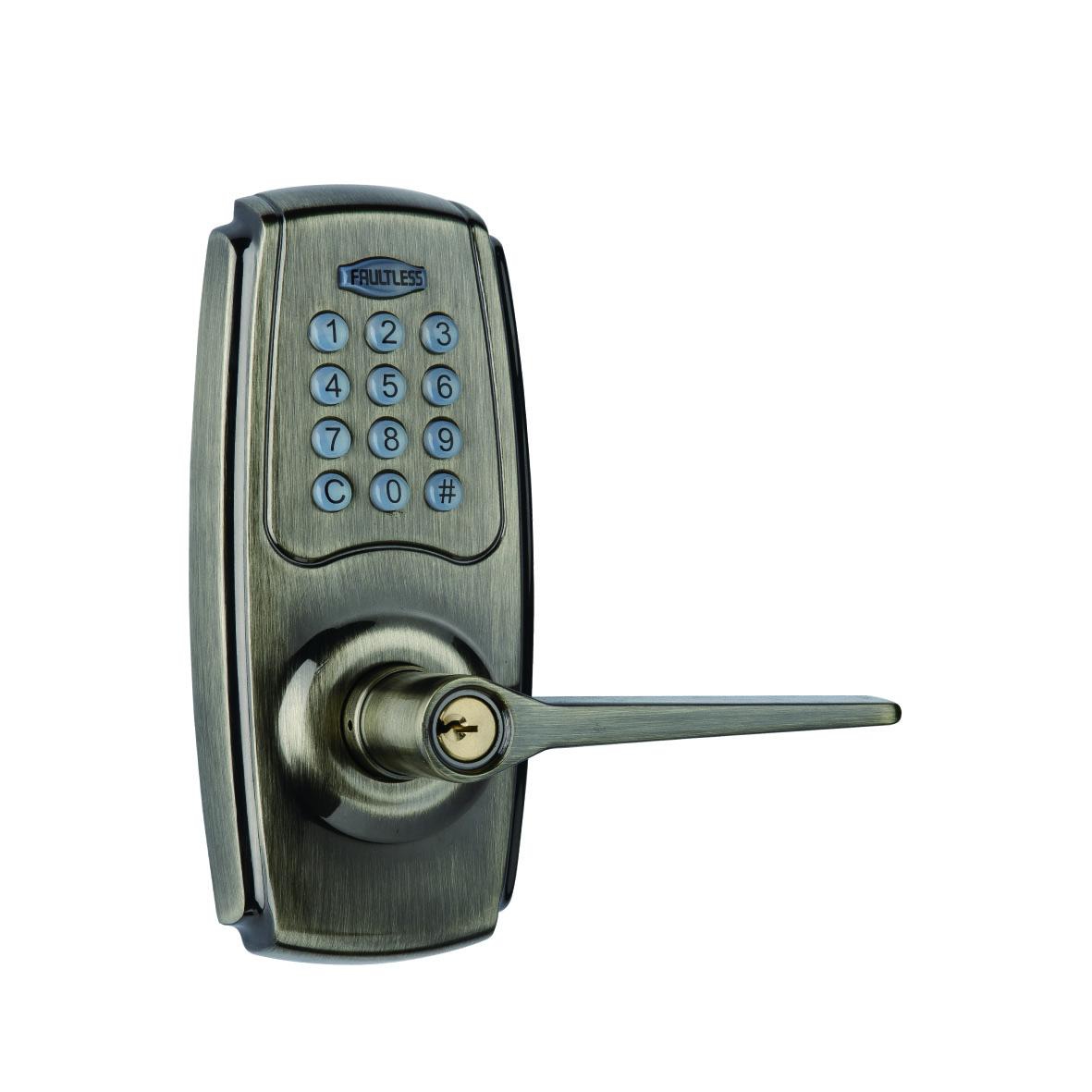

Electronic Keypad Lever(KPL)
Descripción
Product Specification
Features
ANSI/BHMA Grade 2 security
Ideal for garage entry doors, home offices, computer rooms, utility rooms, etc.
Reversible lever fits both right-handed and left-handed doors.
Works with standard door preparations and can be installed with a screw driver in a few minutes without running wires.
Back-up keyway override.
Illuminated keypad.
Low battery indicator.
Lifetime limited mechanical, 5-year finish and 1-year limited electronics warranty.
Product Character
Special Function
Multiple user codes that can be turned off as needed (vacation mode).
Flexibility to choose : switch from automatic relocking to unlocked(passage mode) as needed.
Adjustable automatic relocking delay.
Product Specification
User code : 4-8 digit number combination (Maximum capacity 100 sets)
Programming Code : 6 digit number combination (only 1 set)
Key : 2
Finish : Satin Nickel, Aged Bronze, Bright Brass, Antique Brass
Door bored hole : 2-1/8"(54 mm) or 1-1/2"(38 mm)
Door thickness : 1-3/8"(35 mm) to 2"(51 mm)
Adjustable backset : 2-3/8"(60 mm) or 2-3/4"(70 mm)
Keypad LED color : Green
Power : DC 6V (Four AA 1.5V alkaline batteries)
Operation temperature : -31 F to 150.8 F (-35 C to 66 C)
Size (Outer body) : 3-1/8" x 7-3/32" x 2-15/16" (80mm x 180mm x 75mm)
Size (Inner body) : 3-11/32" x 7-3/8" x 2-29/32" (85mm x 187mm x 74mm)
