MITSA

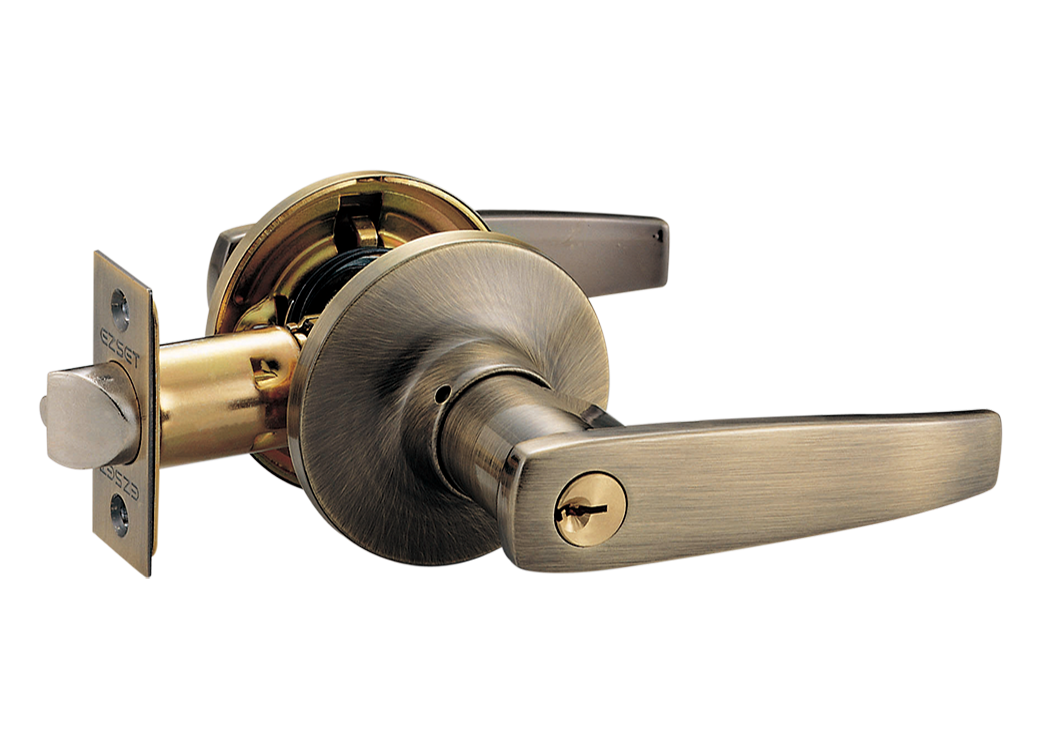

Manhatton (TL-L0600)

E-mail
Descripción • MH (Manhatton)• Entry / Privacy / Passage• US3 / US5 / US15 / US26 / US26D / 12P • Reversible Levers:    Interior & exterior lever are interchangeable to suit both left hand & right hand door.  • Cylinder:    5 pin brass cylinder is available with construction key or master key.• Backset:    Adjustable (AL) 2-3/8” or 2-3/4”(60mm or 70mm)• Door Thickness:    1-3/8” ~ 1-3/4” (35mm ~ 45mm)• Strike     9102. full lip strike 1-3/4” x 2-1/4” (44.4mm x 57.0mm) square corner standard.• Latch:    2-3/8” and 2-3/4” adjustable.(60mm and 70mm)    6-way latch also available.    Faceplate :1" x 2-1/4" (25.4mm x 57mm) square corner standard.    Latch bolt :Zinc alloy lach bolt with 1/2" throw. Nickel plated.
