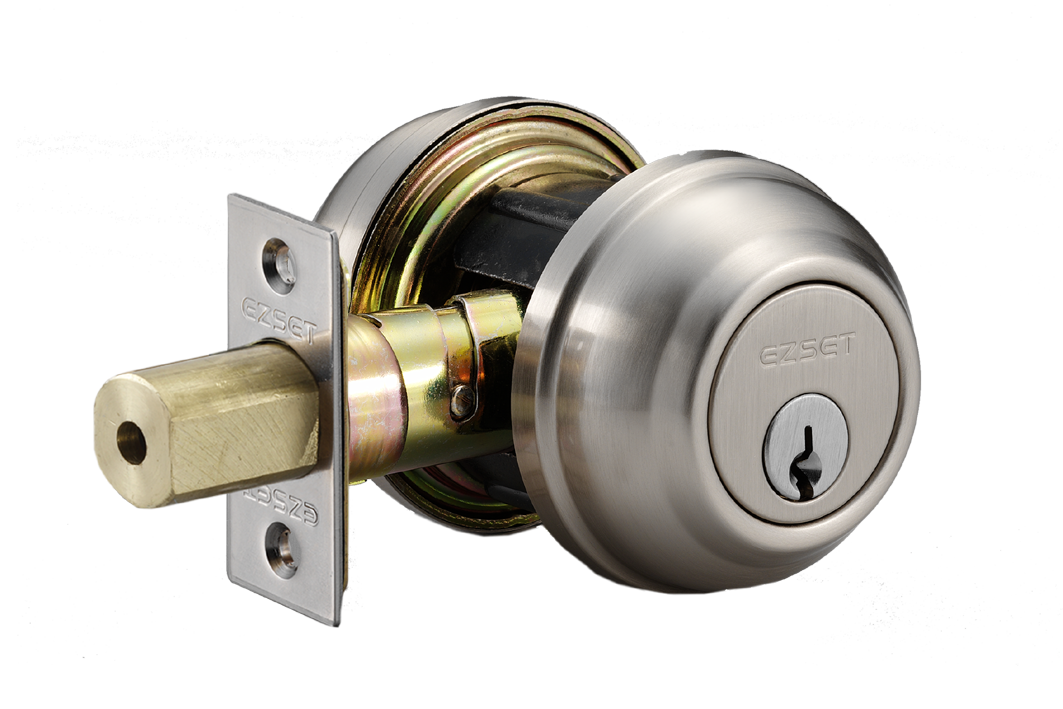

LU-20S11_Grade 2 Deadbolt Series

Descripción Double CylinderUS15 Certification ANSI A156.5-2001 Grade 2. 3 hours fire rating certified.UL File No.R15047Door Thickness 1-3/8” to 1-3/4” (35mm to 45mm) 2" (51mm) optionalStrike LM. Rectangular strike with door reinforcer. 1-1/8" x 2-3/4" x 5/64" (28.4mm x 69.8mm x  2.0mm) square corner standard. Other stikes are available upon requestLatch 2-3/8" and 2-3/4" adjustable. (60mm and 70mm) Faceplate : 1" x 2-1/4"(254.mm  x  57.0mm) Specify round corner, square corner or drive-in. Bolt :Solid brass Full 1" (25.4mm) throw deadbolt, with hardened steel rod insert.Cylinder 5 pin solid brass Kwikset (standard) with black powder metallurgy cylinder housing. Other keyways are available upon requestFinishes US3,US5,US15,US26,US32,US32D,12P,LO3 Other finishes are available upon request
